Ultra Fine Grinding Mill

Ultra Fine Grinding Mill Intorduction

Brand: Clirik
Model: CLUM
Application: Ultra Fine Grinding Mill are suitable for huge capacity producing, widely used in grinding non-flammable and non-explosive materials under 7(the Moh's hardness), such as quartz, feldspar, calcite, talcum, barite, fluorite, iron ore, copper ore quartz, especially for slag, cement clinker, zircon sand, fly ash and carborundum, coal, etc.
Input Size: Below 25 mm.
Output Size: Could be adjusted between 300-3000 mesh.
Capacity: According to your fineness choose, the capacity is about 0.2-45 t/h.

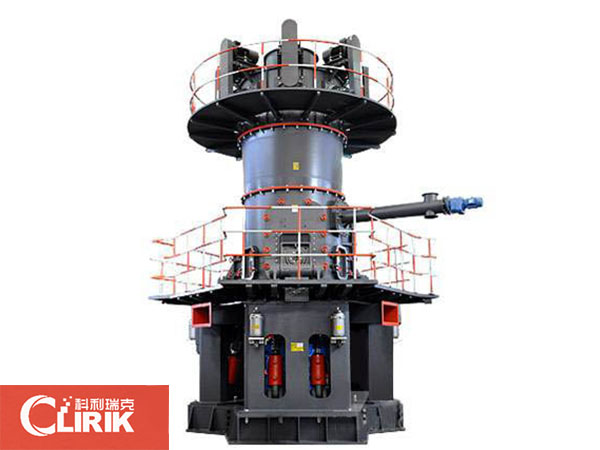

ultra fine grinding mill

Ultra Fine Grinding Mill Advantages

1.High grinding efficiency: save 20~30% power consumption compared with the ball mill.

2.Strong drying capacity: dry and grind raw materials with moisture content as much as 15%.

3. Mutifunction: crushing, drying, grinding, separating and conveying.

4. Low noises and little dust: no direct contact between the grinding rollers and grinding disc, so metallic impact is avoided and its noises is 20~25 decibels lower. Totally closed negative pressure operation has employed by this vertical grinding mill, so there is little dust during the operation.

5. Low wear rate and little metallic pollution: its metal wear is only 5~10g/t.

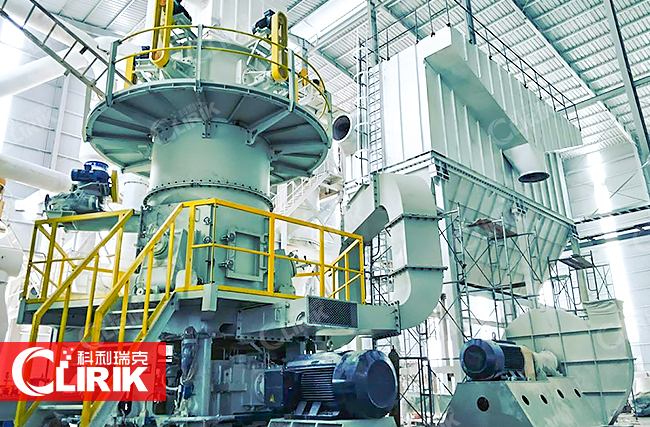

ultra fine grinding mill

Ultra Fine Grinding Mill Working Principle

The grinding disc is driving by motor through reducer. The material falls to grinding disc from the feed opening. The materials are driven to the edge of disc by the centrifugal force and crushed into fine powders by rollers. Then, the hot air from the nozzle take the fine powder to high effiency classsifer.The qualified powder are taken by the air to the powder collector to be collected, while the unqualified powder are sent back for regrinding.

Ultra Fine Grinding Mill Technology Data

Main configuration and production
     Model
Item
CLUM1425 CLUM1632 CLUM1736
Working Diameters(mm) 1400 1600 1700
Number of rollers(pieces) 3 3 3
Number of classifier(pieces) 5 7 7
Power of classifier(Kw) 5X15 7X15 7X(15~18.5)
Main unit power (Kw) 250 315 355
Blower power(Kw) 200 250 315
Feed size (mm) <10mm <10mm <10mm
Moisture of feeding material <3% <3% <3%
Less than 2μm=34%
output(t/h)
11-14 13-17 15-19
Less than 2μm=46%
output(t/h)
7-8 9-10 11-12
Less than 2μm=60%
output(t/h)
3-4 / /
Material: based on calcite
Particle size distribution: measured by micro laser diffraction particle size analyzer in British Malvern3000 instruments
