SLG Continuous Modifying Machine for Powder Surface
Brief Introduction of SLG Continuous Modifying Machine:
Continuous Modifying Machine is used for dispersing powder, modifying surface and filming. The mineral powder surface modifying, widely used in the fields of non-metal stuffing or pigment like plastic, rubber, adhesive, macromolecule materials, high polymer composite, functional materials and dope industries. It can not only improve the compatibility of both non-organic mineral stuff and organic high polymer, enhance binding force of interfaces, raise the mechanical strength and comprehensive ability, but also increase the stuffing ability of powder, save product cost and add special physical and chemical property to the product to some extent.
Application of SLG Continuous Modifying Machine:
SLG Continuous Modifying Machine is the machine is applicable to modifying various materials. It can reach excellent surface modifications for such materials as:
>heavy / light calcium carbonate
> kaoline, talcum
> wollastonite, mica, white carbon black, zinc oxide
> Alumina, silicon powder, graphite
> Magnesium-hydroxide bariumcar
> illite claystone and pyrophylite, hexagonite and etc.

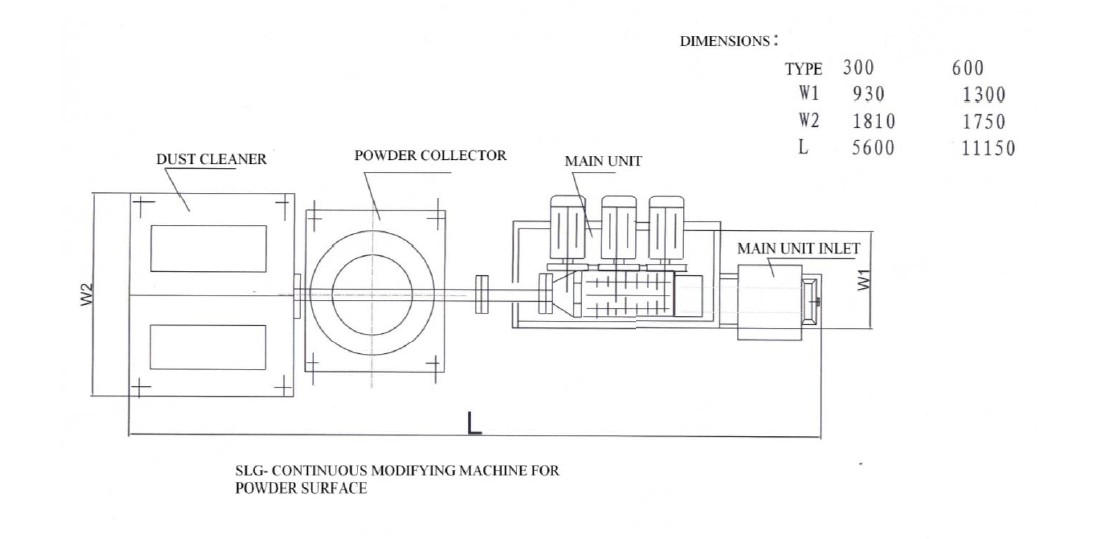

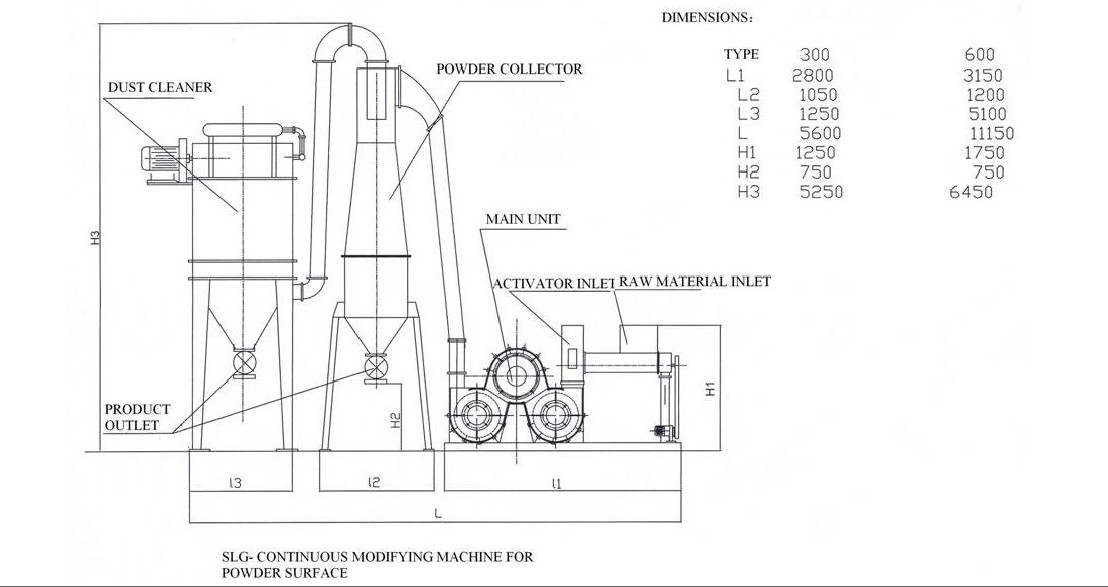

Components of SLG Continuous Modifying Machine:
Features of SLG Continuous Modifying Machine:
1. Continuous operation, large capacity, suitable for industrialization production in various scales.
2. High use and less consumption of modifying agent, high covering and active index of power, energy saving.
3. Both modifying and dispersion function, suitable for any fine materials, special active effect for material with small proportion and big cubage weight like white carbon, mica powder and talcum powder.
4. Powder and agent mixing and running in high speed and vortex, high modifying efficiency, with little change of granulate shape.
5. Running at vacuum, air tight, no dust leakage, no pollution, good operation condition, low labor intensity.
6. Operating in heat and cold conditions, no additional heating or cooling system required, easy operation
7. Independent fluid and non-fluid agent adding system for continuous, stable and even operation.
Model and technical parameter of SLG Continuous Modifying Machine:
Remarks: A) The above listed capacity is a normal production capacity; the practical capacity is subject to the area, the hardness and character of raw materials.
B) Product capacity can be adjusted according to the density of raw materials.
Continuous Modifying Machine is used for dispersing powder, modifying surface and filming. The mineral powder surface modifying, widely used in the fields of non-metal stuffing or pigment like plastic, rubber, adhesive, macromolecule materials, high polymer composite, functional materials and dope industries. It can not only improve the compatibility of both non-organic mineral stuff and organic high polymer, enhance binding force of interfaces, raise the mechanical strength and comprehensive ability, but also increase the stuffing ability of powder, save product cost and add special physical and chemical property to the product to some extent.
Application of SLG Continuous Modifying Machine:
SLG Continuous Modifying Machine is the machine is applicable to modifying various materials. It can reach excellent surface modifications for such materials as:
>heavy / light calcium carbonate
> kaoline, talcum
> wollastonite, mica, white carbon black, zinc oxide
> Alumina, silicon powder, graphite
> Magnesium-hydroxide bariumcar
> illite claystone and pyrophylite, hexagonite and etc.
Components of SLG Continuous Modifying Machine:
Features of SLG Continuous Modifying Machine:
1. Continuous operation, large capacity, suitable for industrialization production in various scales.
2. High use and less consumption of modifying agent, high covering and active index of power, energy saving.
3. Both modifying and dispersion function, suitable for any fine materials, special active effect for material with small proportion and big cubage weight like white carbon, mica powder and talcum powder.
4. Powder and agent mixing and running in high speed and vortex, high modifying efficiency, with little change of granulate shape.
5. Running at vacuum, air tight, no dust leakage, no pollution, good operation condition, low labor intensity.
6. Operating in heat and cold conditions, no additional heating or cooling system required, easy operation
7. Independent fluid and non-fluid agent adding system for continuous, stable and even operation.
Model and technical parameter of SLG Continuous Modifying Machine:
| Type | SLG-3/300 | SLG-3/600 |
| Main unit power (KW) | 18.5KW x 3 | 37KW x 3 |
| Blower power (KW) | 5.5KW | 15KW |
| Main shaft rotating speed (RPM) | 4500 | 2700 |
| Output capacity (kg/h) | 500-1500 | 2000-4000 |
| Size (MM) | 5250X1800X5600 | 7218x3680x6450 |
B) Product capacity can be adjusted according to the density of raw materials.
