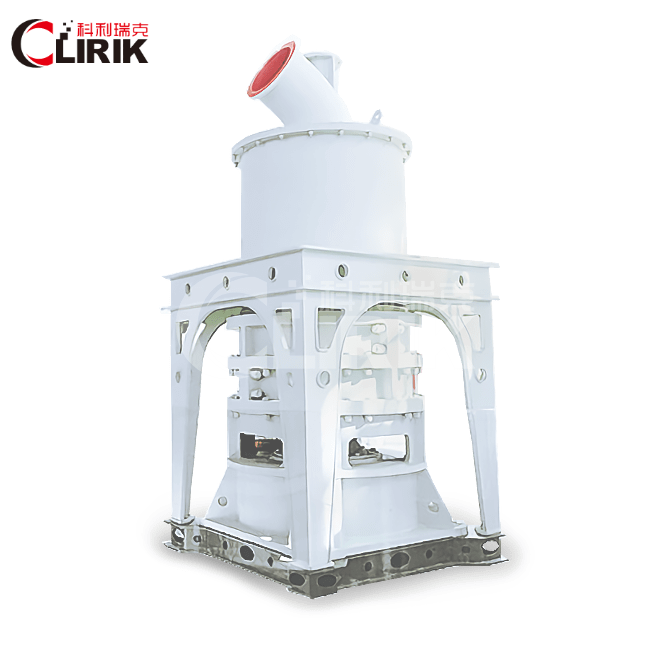

The Oyster shell ultrafine powder grinding mill is a high-tech milling machine designed specifically for grinding oyster shells into ultrafine powder. It is a new type of grinding equipment developed by Shanghai Clirik Machinery Co., Ltd. based on the traditional Raymond mill. This machine has a unique design and advanced technology, which makes it highly efficient and easy to operate.
The Oyster shell ultrafine powder grinding mill can produce high-quality and uniform ultrafine powder with a particle size of 325-3000 mesh. It can grind not only oyster shells but also other non-metallic minerals, such as barite, calcite, limestone, marble, talc, and gypsum. The machine has a large production capacity and high efficiency, which can help users improve their production efficiency and reduce production costs.
The Oyster shell ultrafine powder grinding mill is equipped with advanced dust removal systems, which can effectively reduce the dust pollution during the production process, making it environmentally friendly. It is also equipped with a smart control system, which can automatically adjust the output of the machine according to the input material, making it easy to operate.
Overall, the Oyster shell ultrafine powder grinding mill is an ideal choice for grinding oyster shells and other non-metallic minerals into ultrafine powder. With its advanced technology, high efficiency, and environmental friendliness, it can meet the needs of different users and bring significant economic benefits.
An oyster shell ultrafine powder grinding mill is a machine used to grind oyster shells into very fine powder particles. The working principle of the mill is based on the principle of impact grinding.
1. When the oyster shells are fed into the grinding chamber, they are struck by the high-speed rotating hammers and are crushed into small particles.
2. The grinding chamber of the mill is lined with abrasion-resistant materials to prevent damage to the machine and to ensure that the particles produced are of the desired size.
3. The size of the particles can be controlled by adjusting the gap between the hammers and the liner in the grinding chamber.
4. The oyster shell ultrafine powder grinding mill also has a classifier, which separates the fine particles from the coarse particles.
5. The fine particles are collected in a bag, while the coarse particles are returned to the grinding chamber for further processing.
6. The machine is powered by an electric motor, which drives the rotor and the hammers.
7. The speed of the rotor can be adjusted to control the grinding process.
Adjustable fineness: 325 -3000mesh
Output: 0.5-45t/h
Processing materials: non-metallic ores (oyster shell，limestone, talc, marble, dolomite, barite, etc.), eggshells, shells, bamboo, etc.
Features: stable operation, high efficiency, energy-saving, safety and environmental protection, small footprint, small investment, intelligent control, convenient maintenance, long service life, factory direct sales, guaranteed after-sales service.
Overall, the oyster shell ultrafine powder grinding mill is a versatile machine that is used to produce fine powder particles from a wide range of materials. Its working principle is simple, and it is easy to operate and maintain.
| Model | HGM80 | HGM80A | HGM90L | HGM100L-Ⅱ | HGM100P | HGM125L | HGM1680L |
| Ring Diameter(mm) | 800 | 800 | 900 | 1000 | 1000 | 1250 | 1680 |
| Ring Number (PCS) | 3 | 3 | 4 | 4 | 4 | 4 | 4 |
| Input Size (mm) | ≤10 | ≤10 | ≤10 | ≤15 | ≤15 | ≤20 | ≤20 |
| Adjustable range of finished product (mesh) | 150-3000 | 150-3000 | 150-3000 | 150-3000 | 150-3000 | 150-3000 | 150-3000 |
| Capacity (t/h) | 0.5-5.5 | 0.5-5.5 | 0.8-6.5 | 1.2-10 | 1.2-11 | 2.5-20 | 5-45 |
| Outlet Size L*W*H (mm) | 8605*4139*6050 | 10454*3393*6626 | 11735*3952*7525 | 14507*3633*7562 | 14362*4200*7562 | 19261*4406*8591 | 25067*5414*9007 |
| Main motor power (kw) | 75 | 75 | 55*2 | 132/75*2 | 132/75*2 | 185 | 315 |
