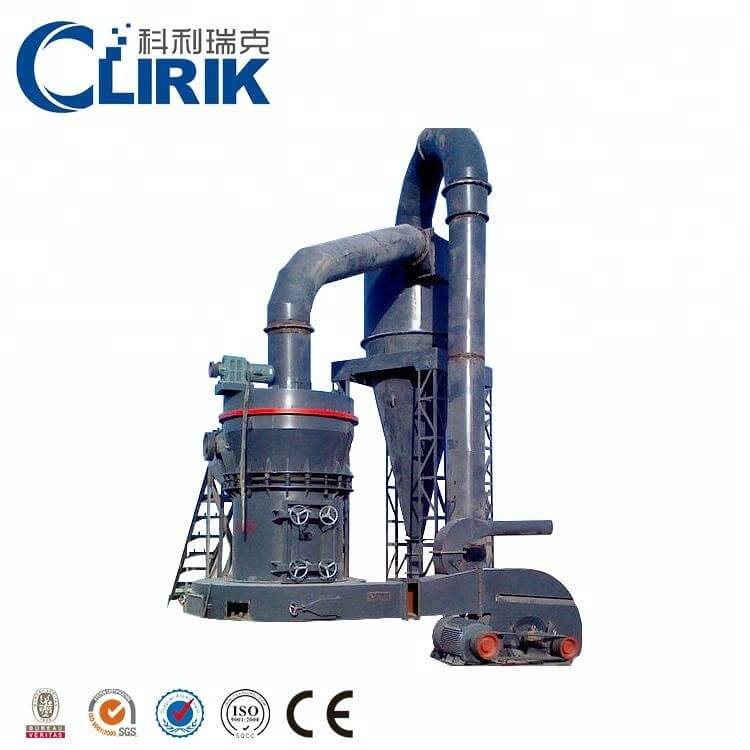

What is a carbon black high pressure suspension grinding mill?

Carbon black high pressure grinding mill also known as Carbon black powder high pressure roller mill, can grind non-flammable and explosive materials with Mohs hardness not greater than 9.3 and humidity below 6%. Its main components include main engine, reducer, analyzer, pipeline device, blower, dust collector, jaw crusher, bucket elevator, electromagnetic vibrating feeder, electric control system, etc.

The machine adopts a number of national patented technologies such as parallel working surface, flexible connection, and roller linkage pressurization, which completely overcomes the traditional industrial pulverizer in terms of application range, output, fineness, energy consumption, service life, etc. It is the most ideal substitute for traditional Raymond mills, ball mills and other powder grinders.

What are the advantages of carbon black high pressure suspension grinding mill?

1. The carbon black high pressure suspension grinding mill force is large. The grinding roller assembly of the high-pressure grinding mill adopts a high-pressure spring device to increase the grinding force. The grinding force of each grinding roller assembly can be increased by 500Kg on the original basis, which greatly improves the milling efficiency.

2. The grinding area is large, and the grinding height of the grinding roller and grinding ring is increased from 160mm to 200mm.

3. Carbon black high pressure suspension grinding mill large amount of shovel.

4. Carbon black high pressure roller mill high classification accuracy.

5. Carbon black high pressure suspension mill double cyclone collector.

6. The main engine adopts a buffer device, and the structure of the main casing is optimized to ensure stable operation and low noise.

7. The main engine and analysis machine adopt quick-change pressing device, which is convenient for maintenance.

8. The residual wind is collected by cloth bags, and there is no dust pollution.

9. The blower of the high pressure grinding mill adopts a high-pressure centrifugal fan, and the air volume and air pressure are increased, which greatly improves the pneumatic conveying capacity.

What is the working principle of carbon black high pressure suspension grinding mill?

The carbon black high pressure suspension grinding mill is mainly composed of the main engine, the blower, the ultra-fineness analyzer, the finished cyclone powder collector, the bag filter and the connecting air duct pipes.

In the grinding chamber of the Carbon black high pressure suspension grinding mill ( high pressure roller mill), the grinding roller assembly is suspended on the grinding roller hanger through the cross arm shaft, and the grinding roller hanger is fixedly connected with the main shaft and the blade holder. The pressure spring is tightly pressed on the outer end of the cantilever of the bearing chamber of the grinding roller by the tension rod, and the cross-arm shaft is used as the supporting point, and the grinding roller is tightly pressed on the inner surface of the grinding ring by the spring pressure.

When the motor rotates through the transmission device, the blade mounted on the blade holder rotates synchronously with the grinding roller. The grinding rollers rotate around themselves while rolling on the inner circular surface of the grinding ring. The analysis machine drives the impeller of the analysis machine to rotate through the motor transmission device, and the speed adjustment of the analysis machine determines the fineness of the powder.

The complete set of high pressure suspension grinding mill is mainly composed of grinding system, analysis system, dust removal system and high-pressure device. The components of the grinding system include motors, blades, grinding rollers, gearboxes and other accessories. Compared with other grinding mills, the structure of the high pressure micro-powder mill has the advantages of higher efficiency and more wear resistance.

Which materials can carbon black high pressure suspension grinding mill?

Carbon black high pressure suspension grinding mill can grind non-flammable and non-explosive materials under 7 (the Moh’s hardness), such as quartz, dolomite, feldspar, calcite, talcum, barite, fluorite, iron ore, copper ore quartz, especially for slag, cement clinker, zircon sand, fly ash and carborundum, coal, etc.

Why did you choose Clirik as your carbon black high pressure suspension grinding mill manufacturer?

Shanghai Clirik Machinery Co., Ltd, located is a large professional manufacturer with import & export rights specializing in research, manufacture and sales of crushing machinery, mining equipment, and grinding machines, such as micro powder grinding equipment, ultra-fine grinding equipment, stone grinding equipment, mineral grinding machine, hammer crushers, jaw crushers and associated accessories.

The services we can provide

Welcome to your visit to our factory

Carbon black high pressure suspension mill parameters

Model	Roller			Ring		Feeding Size(mm)	Finished Size(mm)	Mill System Power(KW)	Capacity (t/h)	Overall Dimension (mm)
	Quantity (piece)	Diameter (mm)	Height (mm)	Inner Diameter (mm)	Height (mm)
YGM7815	3	260	150	780	150	15	0.613-0.033	35.7	1.0-3.0	4300*3500*5100
YGM9517	4	310	170	950	170	25	0.613-0.033	72.65	2.1-5.6	7100*5900*7900
YGM1280	3	370	240	1170	240	20	0.613-0.033	145.15	4.5-12.0	9300*5600*8200
YGM1300	4	410	280	1270	280	20	0.613-0.033	202.15	6.5-16.0	9100*8200*8400
YGM1620	4	450	300	1500	300	20	0.613-0.033	322.2	8.0-20.0	12500*5700*10500
YGM1720	4	510	300	1720	300	35	0.613-0.033	450	10.5-28.0	11550*9500*1050
