China Grinding Mill
Introduction of China grinding mill:
Five models: HGM80, HGM90, HGM100, HGM100A, and HGM125
Finished production fineness: 325meshes~2500meshes, 5-47micron
The capacity (ton/hour) ranges from 0.5T/H to 10T/H
Application of China grinding mill:
China grinding mill is mainly applied to grind non-inflammable, non-explosive and brittle materials with Mohs’ hardness under six. Such as calcite, chalk, limestone, dolomite, kaolin, gypsum, dolomite, calcium carbonates, petroleum coke, carbon black, alumina, quartz, pigments, coals, feldspar, chromic oxide, clays, cements and talc etc, totally more than 100 kinds of materials.

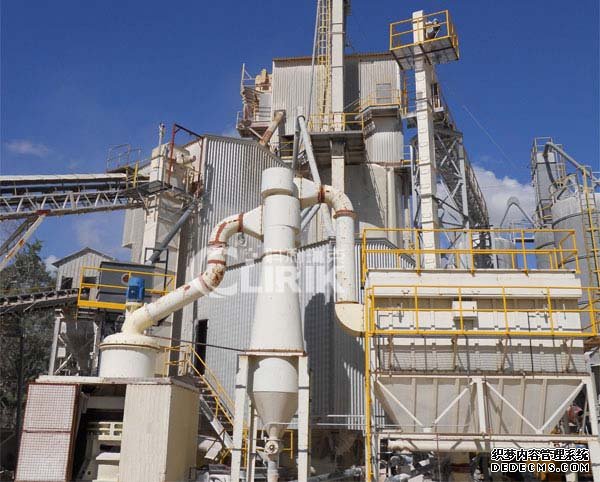

Production line of China grinding mill:
The whole set HGM China grinding mill consists of hammer crusher, bucket elevator, storage hopper, vibrating feeder, main unit, inverter classifier, cyclone collector, pulse deduster system, high pressure positive blower, air compressors and electrical control systems.
Features of China grinding mill:
1.High Efficiency
Under the same finished final size and the same motor power, the capacity of the machine is twice as much as jet mill, mixing grinder and ball mill, and energy consumption decreased 30%.
2.Long lifecycle of spare parts
The ring and roller are forged by special material with high utilization,the lifetime can reach 2-5 years for grinding calcite carbonate.
3.High safety and reliability
As no rolling bearings or screws in grinding cavity, there are no problems caused by bolts shedding or rapid wear of bearings and seal components.
4.High fineness, flexible adjustment
The final fineness of the grinding materials can be adjusted between 325 meshes and 2500 mesh (47-5 micron), and the product fineness can reach D97≤5μm.
5.Environment-friendly
Main specification of China grinding mill:
| Model | HGM80 | HGM90 | HGM100 | HGM100A | HGM125 |
| Ring Diameter(mm) | 800 | 900 | 1000 | 1000 | 1250 |
| Ring Number/pcs | 3 | 3-4 | 3-4 | 4 | 4 |
| Roller Number/pcs | 21 | 24-32 | 27-36 | 27-36 | 40-44 |
| Main Shaft Speed/r. p. min | 230-240 | 200-220 | 180-200 | 180-200 | 135-155 |
| Input Size/mm | ≦20 | ||||
| Finished Size/um | 5-43(325-3000) | ||||
| Capacity t/h | 0.4-4.5 | 0.4-5.5 | 0.4-6.5 | 0.4-7.5 | 1.5-12 |
| Outlet Size L*W*H/m | 13.9*4*6.2 | 14.7*4.8*7.2 | 18*4.6*8.6 | 18*4.6*8.6 | 14*9*10.25 |
