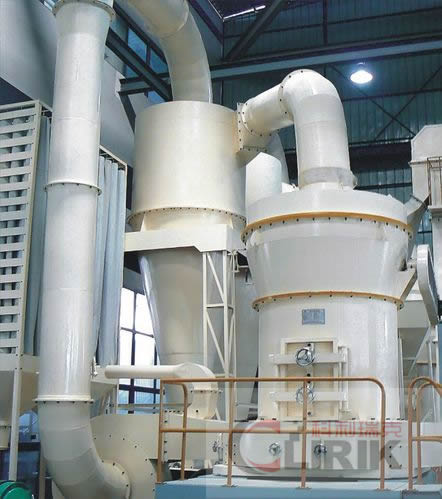

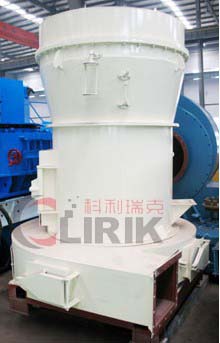

Raymond Mill
Raymond Mill is used to grind barite, calcite, potash feldspar, talcum, marble, limestone, ceram and slag below scale 7 of Moth’s hardness and 280-odd sorts of non-inflammable and non-explosive stuff in the traded of mining, building material, chemical engineering and metallurgy for power generation and processing. The product size is adjustable on required in the range of 100-325 meshes.
After many years of practice and improvement, its structure is getting perfect day by day. For low consumption, low investment, environment friendly , small occupation area, and more efficient than the traditional mill, it is widely used in the field of metallurgy, building materials, chemical industry and mining to process powder. The series is used in grinding the non-flammable and non-explosive stuff which has the Moh’s hardness below 7, humidity less than 6%, such as gypsum, talc, calcite, limestone, marble, feldspar, barite, dolomite, granite, kaolin, bentonite, bauxite, iron ore etc., the final products change from 613 micron to 44 micron. Through the function of separator and blower, it can meet different customers’ demand.
Detail Specification of Raymond grinder equipment:
After many years of practice and improvement, its structure is getting perfect day by day. For low consumption, low investment, environment friendly , small occupation area, and more efficient than the traditional mill, it is widely used in the field of metallurgy, building materials, chemical industry and mining to process powder. The series is used in grinding the non-flammable and non-explosive stuff which has the Moh’s hardness below 7, humidity less than 6%, such as gypsum, talc, calcite, limestone, marble, feldspar, barite, dolomite, granite, kaolin, bentonite, bauxite, iron ore etc., the final products change from 613 micron to 44 micron. Through the function of separator and blower, it can meet different customers’ demand.
Detail Specification of Raymond grinder equipment:
| Type | Roller | Max. feeding size(mm) | Fineness of product(mm) | Output (t/h) | Power of machine(KW) | Size(mm) | ||
| No. | Dimension(mm) | Height(mm) | ||||||
| YGM7815 | 3 | 260 | 150 | 15-20 | 0.025-0.005 | 0.28-3 | 18.5 | 4300*3500*5100 |
| YGM8314 | 3 | 270 | 140 | 15-20 | 0.025-0.005 | 0.35-3.4 | 22 | 5300*4100*5200 |
| YGM9517 | 4 | 310 | 170 | 15-25 | 0.025-0.005 | 1.5-6.5 | 37 | 7100*5900*7900 |
| YGM4121 | 5 | 410 | 210 | 15-25 | 0.613-0.044 | 3-12 | 75 | 7850*8000*9700 |
