Primary Crushing and Secondary Crushing
Primary Crushing---PE200x350 Jaw crusher is mainly used in the industries of metallurgy, mining, chemical, cement, construction, refractory materials and ceramics, suitable to crush hard and soft ores with compressive strength less than 320Mpa. This machine can break materials to medium size and fine size.
Secondary Crushing ---PC400x300 hammer crusher is mainly applied to low abrasion materials with medium hardness and compression strength not exceeds 100Mpa. Such as coal, salt, chalk, gypsum, bricks, tiles, limestone, etc. It is also used to crush wood chips with strong fiber structure and tenacity, and the waste from asbestos cement to recycle asbestos fiber, etc. In addition, hammer crusher can be not only applied in crushing line and sand production line, but also applied instead of cone crusher.

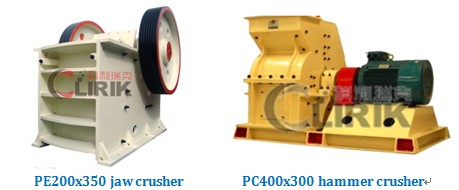

Images of PC400x300 hammer crusher and PE200x350 jaw crusher
Technical Data of PC400x300 Hammer Crusher:
| Model | PC400x300 |
| Rotor diameter /mm | 400 |
| Rotor length /mm | 300 |
| Rotor speed r/min | 1100 |
| Max. feeding size /mm | <100 |
| Output size /mm | 5-10 |
| Capacity T/h | 5-13 |
| Motor power /KW | 11 |
| Number of hammer /piece | 16 |
| Weight /T | 0.8 |
| Overall dimension L*W*H/mm | 900*670*860 |
Technical Data of PE200x350 Jaw crusher:
| Type | Opening Size(mm) | Max. Feed Size(mm) | Output Open Range(mm) | Power(KW) | Capacity(t/h) |
Size(mm) L*W*H |
| PE200x350 | 200x350 | 125 | 15-40 | 7.5-11 | 5-16 | 1056x1142x1220 |
